Molex:469911024

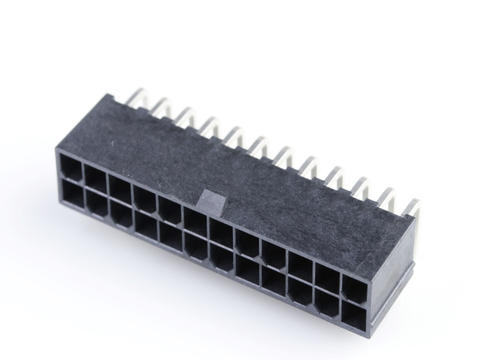

Mini-Fit Jr. Reflow Solder Capable Header, Right-Angle, Dual Row, 24 Circuits, without Mounting Peg, Tin (Sn) Over Nickel (Ni) Plating, Glow-Wire Capable
系列:Mini-Fit Family Power Connectors
产品包装:盘状
相关认证: EU RoHS   REACH SVHC   Low-Halogen
型号详情 产品文件 在线咨询

全部收起

规格属性

收起

属性:
PCB插座头
间距(mm):
4.2
孔位数(pin):
24
行数:
2
电流(A):
13
额定电压(V VAC):
600
材质:
高温热塑型塑料
颜色:
黑色
基材:
黄铜
镀层:
哑光锡
材料-终端电镀:
哑光锡
安装方式:
穿孔式
安装方向:
直角
阻燃性:
UL94V-0
最低操作温度(℃):
-40
最高操作温度(℃):
105

产品购买信息

收起

最小包装量:
240
整箱包装量:
960.0
最小包装重量(kg):
2.9
整箱包装重量(kg):
交期:
12-14周
产地:
包装大小:

型号详情

收起

销售用图纸:
SD-46991-001-000
REACH SVHC:
Not Contained Per -D(2020)9139-DC (19 Jan 2021)
UPC:
883906760069
UL:
E29179
CSA:
LR19980
Net Weight:
9.907/g
注解:
Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp Terminal Crimped to 16 AWG wire., See Molex product specification PS-45750-001 for additional current de-rating information.This Molex product is manufactured from material that has the following ratings, tested by independent agencies : a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12.and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety; section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customer’s evaluation of suitability, that higher performance is required, please contact Molex for possible product options.
应用:
板对板, 线对板
状态:
Active
小系列:
46991
耐用性(插拔次数) - 最多次数:
75
锁定插接部位:
插接极性:
可配插产品指南:
先接后断:
PC厚度:推荐:
1.78mm
可堆叠的:
PCB 定位器:
PCB 极性:
有护墙的:
全部
穿孔式表面焊接(SMC):
PCB 焊脚长度:
3.3
Glow-Wire Capable:
Lead-freeProcess Capability:
SMC&WAVE
技术文档下载:
系列目录下载:
  • Mini-Fit Connector Family.pdf

    下载
包装规格下载:
产品规格下载:
  • 55560004-PS-CH-000.pdf

    下载
