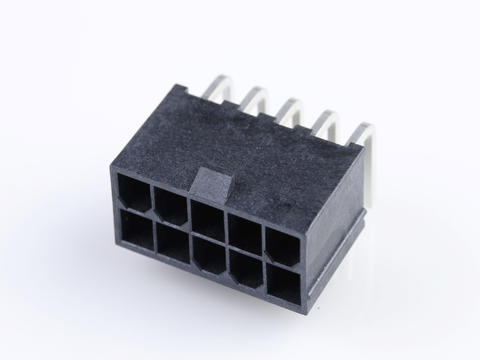

销售用图纸：

SD-46991-001-000

REACH SVHC：

Not Contained Per -D（2020）9139-DC （19 Jan 2021）

UPC：

883906760038

UL：

E29179

CSA：

LR19980

Net Weight：

4.196/g

注解：

Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp Terminal Crimped to 16 AWG wire., See Molex product specification PS-45750-001 for additional current de-rating information.This Molex product is manufactured from material that has the following ratings, tested by independent agencies : a） A Glow Wire Ignition Temperature （GWIT） of at least 775 deg C per IEC 60695-2-13. b） A Glow Wire Flammability Index （GWFI） above 850 deg C per IEC 60695-2-12.and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety; section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard（s）. If it is determined during the customer’s evaluation of suitability, that higher performance is required, please contact Molex for possible product options.

应用：

板对板, 线对板

状态：

Active

小系列：

46991

耐用性（插拔次数） - 最多次数：

75

锁定插接部位：

是

插接极性：

有

可配插产品指南：

否

先接后断：

否

PC厚度：推荐：

1.78mm

可堆叠的：

否

PCB 定位器：

是

PCB 极性：

有

有护墙的：

全部

穿孔式表面焊接(SMC)：

是

PCB 焊脚长度：

3.3

Glow-Wire Capable：

是

Lead-freeProcess Capability：

SMC&WAVE
